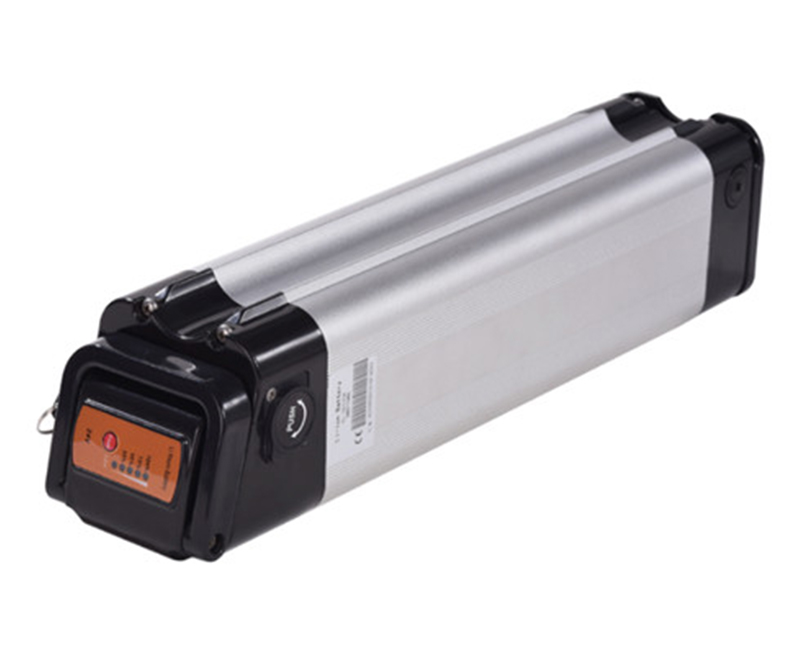

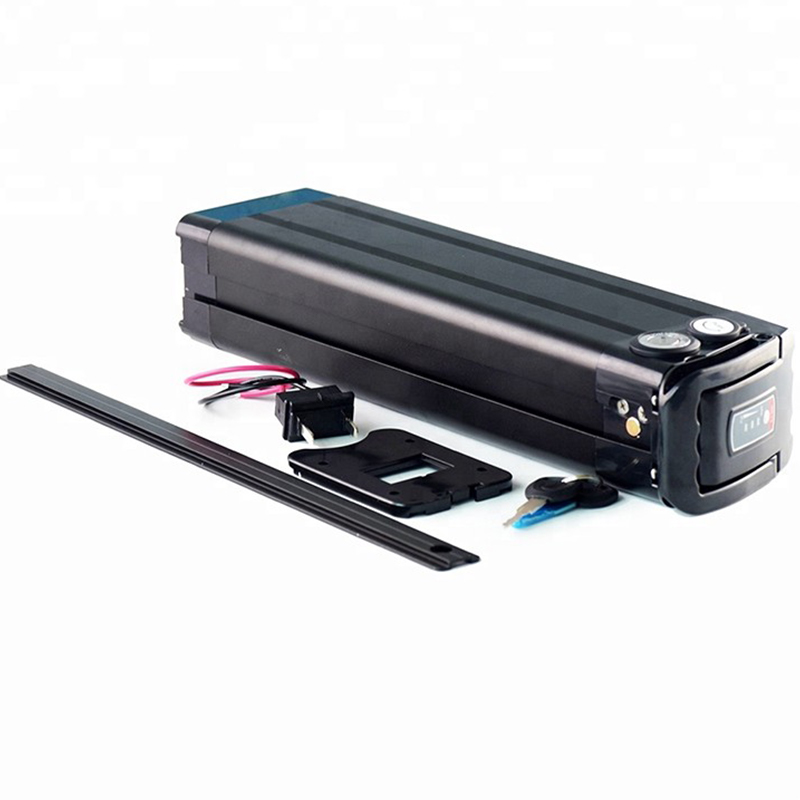

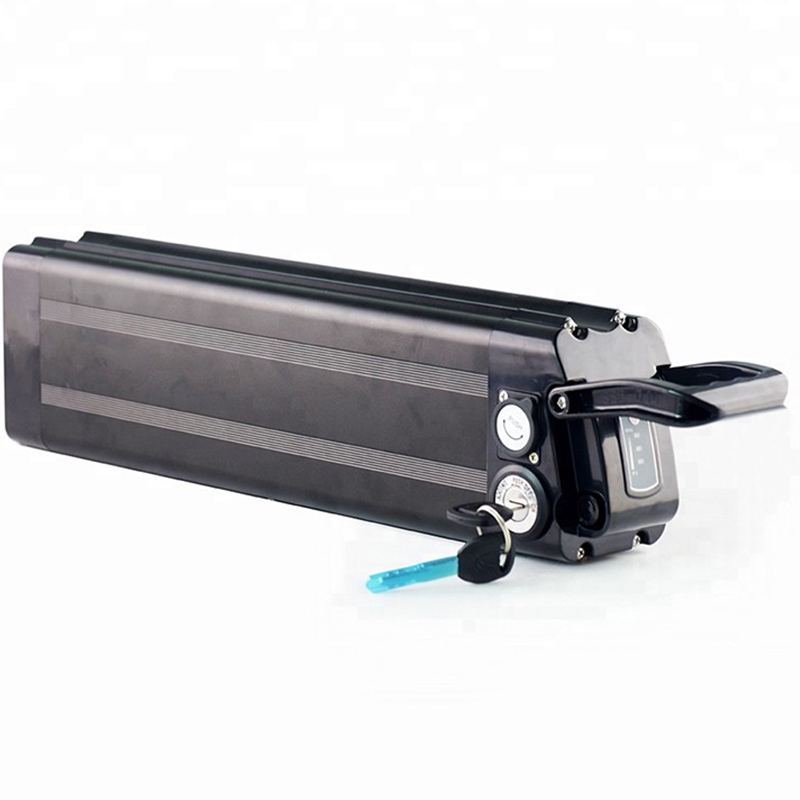

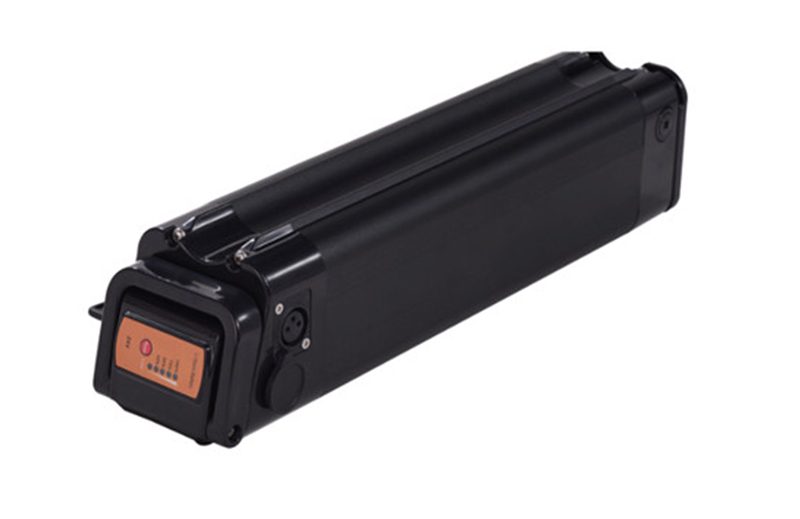

Custom 24V/ 36V 10.4 and 13AH Silver Fish Battery for E-Bike Battery
Description: Main parameters of e bike battery 48v
– – Service by us- –
1. Give you the specific battery pack within 24hours according to your requirements.
2. Professional: Professional technicians offer overall systematic…
| Nominal voltage | 48V | |
| Charge voltage | 54.6V | |
| Nominal capacity | 20Ah | |
| Battery type | 18650 lithium ion battery cell | |
| Battery configation | 13S8P | |
| Standard charge current | 3A | |
| Continuous discharge current | 25A | |
| Peak discharge current | 75A | |
| Discharge cut off voltage | 36.4V | |
| Charge method | CC/CV | |
| Net weight | 4.8KG | |
| Dimension | 420*115*75mm | |
| Available colors | silver and black | |
| Case material | aluminum case+ABS | |
| Warranty | 1 year | |
| Lifecycle | 500 times | |
| Charge temperature | 0~45°C | |
| Discharge temperature | -20~60°C | |
| Battery chemistry | LiNiCoMnO2 | |
| Fit motor | 500W,750W,1000W |
Additional function: We can add the Bluetooth BMS on the battery,which you can check the battery SOC from it.
Battery Max discharge:up to 100A
Bluetooth App can monitor the all battery parameters by smart phone
Heater with MCU to heat the battery automatically when in very low temperature.
Description:
– – Service by us- –
1. Give you the specific battery pack within 24hours according to your requirements.
2. Professional: Professional technicians offer overall systematic service.
3. One-stop battery solution with battery cells, BMS, case and matching charger.
4. Beyond customer demand: To think more for customer, do better for customer and make customer more satisfied.
5. MOQ: 1 unit is ok for your first battery pack to be tested.
6. Warranty: 2years
7. Our solutions:
——————— After-Sales Service ————————
1 year warranty
2. We will replace the broken parts with new parts in the next in the next order
3. Choose the cheapest and safest shipping company
4. Track the order until you get the goods
5. Welcome any feedback and advice for our products.
1. Number of discharge cycles: 500 times
Safety, environmental protection, high energy density, good low temperature performance.
This battery is the most suitable battery for electric bicycles
2. Features
For the unique design of the electric bicycle application platform, ternary material (NCM) or lithium iron phosphate (LFP) batteries can be selected according to the design requirements;
Stable voltage platform to meet the continuous and stable power output of electric bicycles;
Small and lightweight design, in line with the trend of electric bicycle batteries;
Stable and reliable power management system (BMS) to maximize battery control and efficiency:
3. Shelf life: 3 years
