Specification Product Application:
Electric patrol cars, electric golf charters, electric cruises, small electric vehicle battery packs;
Backup battery and uninterrupted power supply system;
Wireless base station backup system;…
The 12.8V 100Ah lithium iron phosphate power battery is equipped with a BMS battery management system. Under technical guidance, a certain number of series and parallel connections can be realized, and it can be flexibly disassembled and assembled to meet the power demand of a variety of scenarios.
This product is based on the standard: The People’s Republic of China National Standard GB31241-2014/GB/T18287-2013 “Safety Requirements for Lithium Ion Batteries and Battery Packs for Portable Electronic Products”.
1) Name: LiFePO4 Battery (Iron Lithium Ion Battery)
2) Model: DP8174135/4S14P/100Ah/12.8V
3) Battery: DP8174135-5C/7200mAh/3.2V
4) Warranty period: 1 year
5) Nominal capacity: 100Ah
6) Nominal voltage: 12.8V
7) Internal resistance ≤5mΩ
8) Charging voltage: 14.6V
9) Standard charging current: 50A
10) Maximum charging current: 100A
11) Standard discharge current: 50A
12) Maximum continuous discharge current: 100A
13) Discharge cut-off voltage: 8.8±0.3V
14) Charging temperature: 0～45℃; Discharging temperature: -20℃～60℃, 0.2C discharge is recommended for the limit temperature of -20℃ and 60℃;
15) Storage temperature: less than 1 month, -20℃～60℃; less than 6 months, -20℃～30℃;
Electric patrol cars, electric golf charters, electric cruises, small electric vehicle battery packs;
Backup battery and uninterrupted power supply system;
Wireless base station backup system;

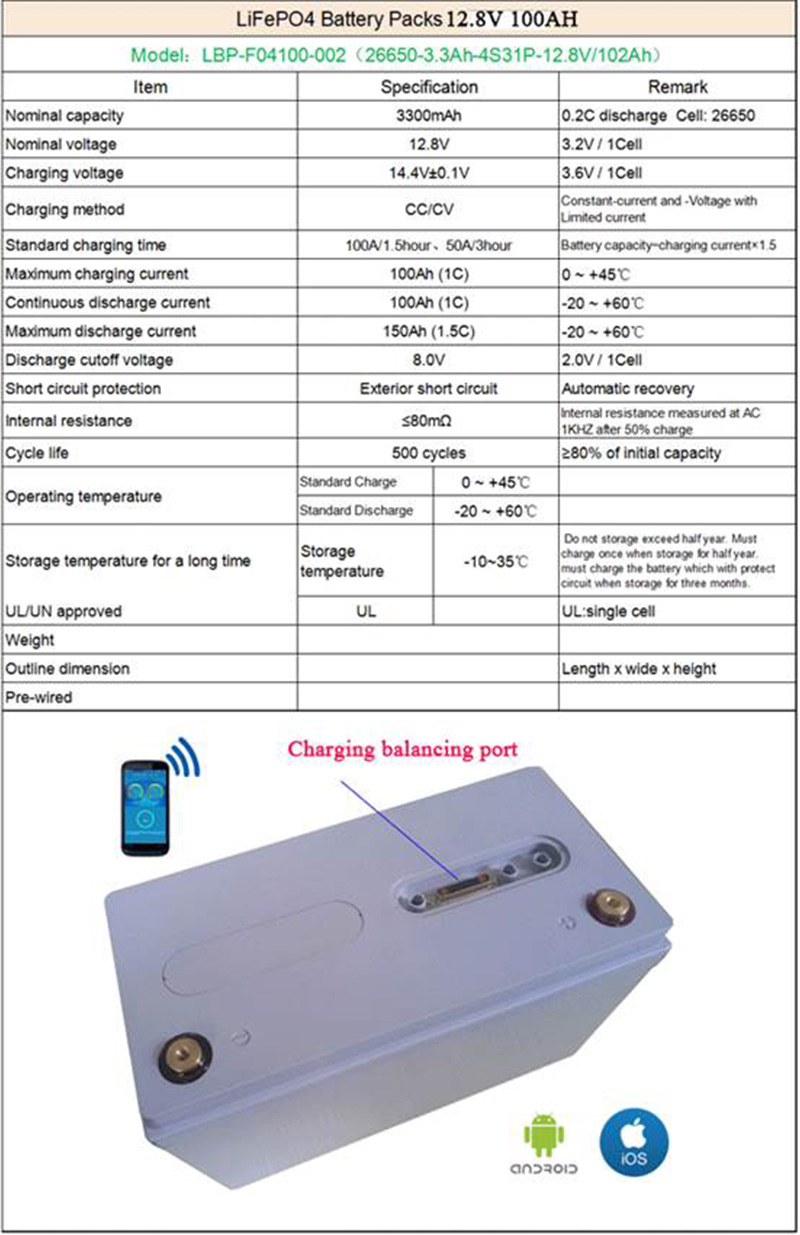

Lithium iron phosphate battery 26650-3.3Ah-4S31P-12.8V/102Ah;

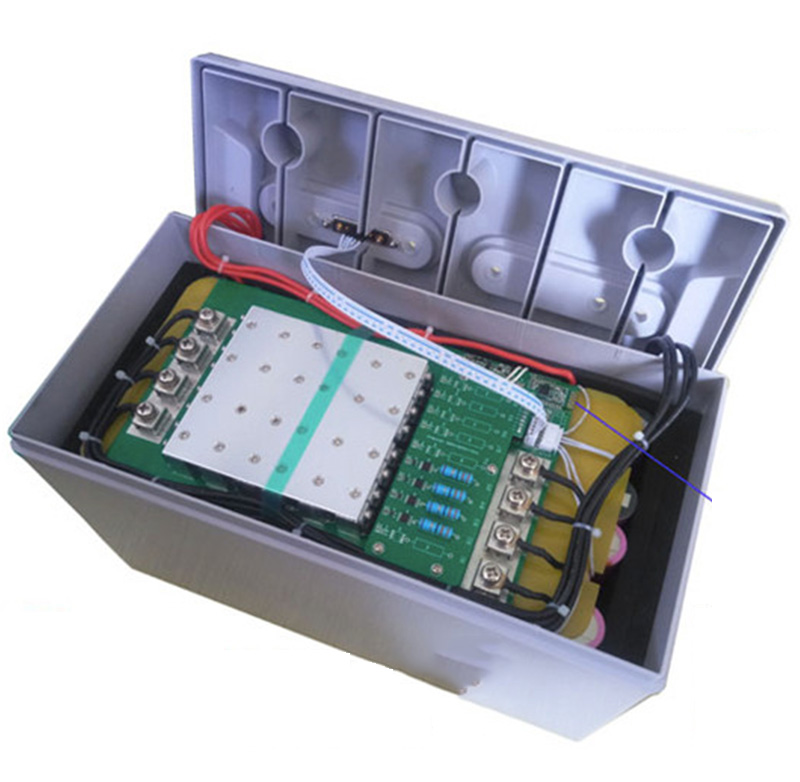

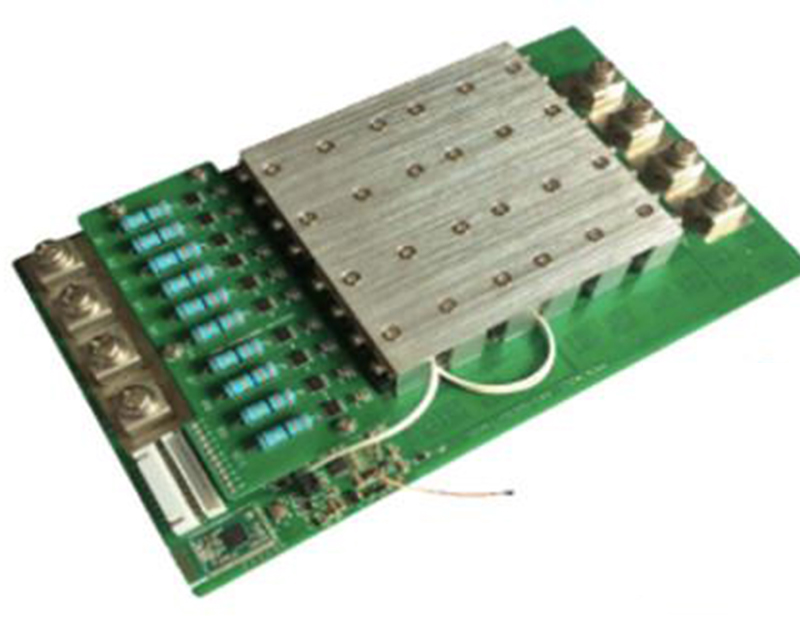

The management module adopts PCM-L10S200-C49, the chip adopts TI BQ series, can read the total voltage of the battery, working current, temperature, cycle times, design capacity, use time, remaining time, product serial number, manufacture date, manufacturer Information, etc.
Bluetooth module uses PCM-BM001 and connects to dedicated APP to display the total battery pack voltage, operating current, temperature, number of cycles, design capacity, usage time, remaining time, product serial number, etc. ;
Android software please contact Apple App Store Download
The charger uses UGP-2200W series: constant current and constant voltage 14.4V/60A;
Maximum continuous operating current 150A, overcurrent 330-370A (adjustable);
With a balanced charging interface, the voltage imbalance can be balanced through an external balanced charger;
