Rechargeable Batteries And Charger 14.8V 10AH Medical

Custom Medical Battery pack 4S 14.8V 10Ah

Product Details

LKG-14.8V-10AH Rated capacity: 1000(mah)
current: 5(A)
Dimension: 39x70x130(mm)
Nominal voltage (V): 14.8V
Nominal capacity (Ah): 10AH
Operating voltage range: 16.8V-12.0V
Over charge protection cut-off voltage (V): 16.8V
Over-discharge protection cut-off voltage (V): 12.0V
Maximum charge current: ≤5A
Continuous discharge current: ≤6A
Pulse discharge current: ≤35A
With load capacity: ≤ 148W
Service life: ≥800 times
Charging temperature (°C): 0~45°C
Discharge temperature (°C): -20~60 °C
Storage temperature (°C): -20 to 35 °C
Battery temperature protection (°C): 70°C±5°C
Dimensions (mm): 60(H) x 90(W) x 160(L)
Internal resistance of battery (mΩ): ≤ 150 mΩ
Battery weight (kg): about 1.2kg
Input port requirements: input and output with the same end, 16 square plug. 1 positive electrode, 3 negative electrode, and mating line. 15 inches long, 1.52 red, black.
Packaging process: PVC shrink shell
Features: Long cycle life, light weight battery, high safety performance, green environment
Widely used: Fishing equipment power supply, wireless monitoring equipment, solar street lights, solar energy storage, energy storage power station, mining, medical equipment, machinery and equipment, instrumentation, communications equipment, communications base stations, power tools, LED lamps, traffic instructions Brands, portable small appliances, toys, etc.

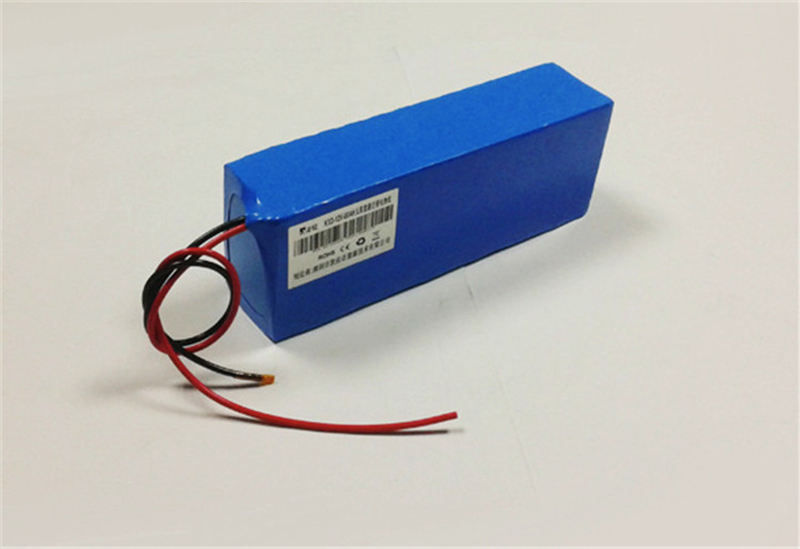

rechargeable batteries and charger 14.8v 10ah medical 2

Higher Voltage
Our battery hold a higher voltage during use than lead batteries. This equals more torque for your motor and allows the controller and electronics to run at their optimal efficiency. When you step on the pedal with lead batteries, the voltage can drop below 10V causing the controller to run inefficiently and providing less power to the motor which reduces torque. The higher voltage of our golf cart batteries will allow your cart to get up to speed quicker, and hold the speed higher, throughout the entire charge cycle and while going up hills.

Fast Charging
OUR batteries are 99.1% efficient whereas lead acid batteries can be as little as 50 – 80% efficient. When you charge lead acid batteries, you can lose anywhere from 10% – 50% of the energy from the charger to your batteries. This means 50% of the power used to charge your battery is being lost due to resistance from the lead batteries. Using your existing charger, lithium batteries can charge up to 50% faster. We recommends you purchase one of our chargers for your golf cart to get the best performance and longest life from our lithium golf cart batteries. OUR lithium batteries may be recharged in less than 1 hour when you purchase a high-speed lithium charger from us.

Hot Tags: rechargeable batteries and charger 14.8V 10AH medical, China, suppliers, manufacturers, factory

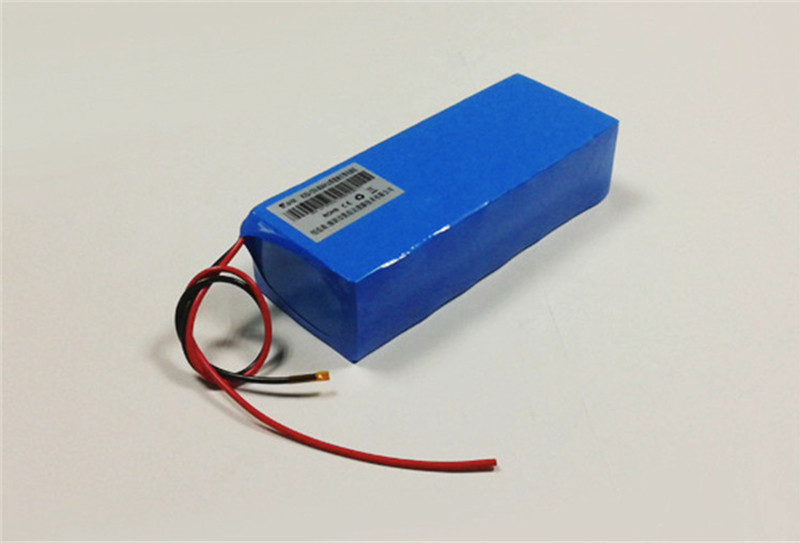

rechargeable batteries and charger 14.8v 10ah medical 3

1) Environmental protection.
2) High temperature performance, the maximum working temperature can reach 70 ℃
3) High capacity.
4) Fast charging.
5) Safety in use.
6) Long cycle life, charge up to 2000 times.
7) No memory effect.
8) No mercury, no fire, no explosion, no leakage.
9) High temperature resistance.
10) The stable discharge platform can support high-current and high-power charging and discharging.
11) Charging and discharging port with Anderson connector
12) With display screen, it can display voltage and remaining power

1. OEM and ODM manufacturers with various designs.
2. Reliable quality, competitive price, fast delivery and excellent service.
3. Solid packaging, stable shipment, 100% testing and inspection before shipment to ensure quality.
4. Comply with CE, ROHS, UN38.3, MSDS and other certification standards.
