Home > Products > Lithium Ion Power Battery Pack > Battery 24V 30AH For Medical Scooter
Battery 24V 30AH For Medical Scooter

Custom Electric Wheelchair Battery 24V 30Ah

Product Details

Battery Name: 24V30AH, 36.4AH lithium battery
Battery Type: LKG18650-14P7S
Nominal voltage (V): 24V
Nominal capacity (Ah): 30AH, 36.4AH
Operating voltage range: 29.4V-21.0V
Over charge protection cut-off voltage (V): 29.4V
Over-discharge protection cut-off voltage (V): 21.0V
Maximum charge current: ≤10A
Continuous discharge current: ≤20A
Pulse discharge current: ≤65A
With load capacity: ≤ 480W
Service life: ≥ 500 times
Charging temperature (°C): 0~45°C
Discharge temperature (°C): -20~60 °C
Storage temperature (°C): -20 to 35 °C
Battery temperature protection (°C): 70°C±5°C
Size (mm): 75(T) x155(W) x 250(H)
Internal resistance of battery (mΩ): ≤ 100 mΩ
Battery weight (kg): about 4.7kg

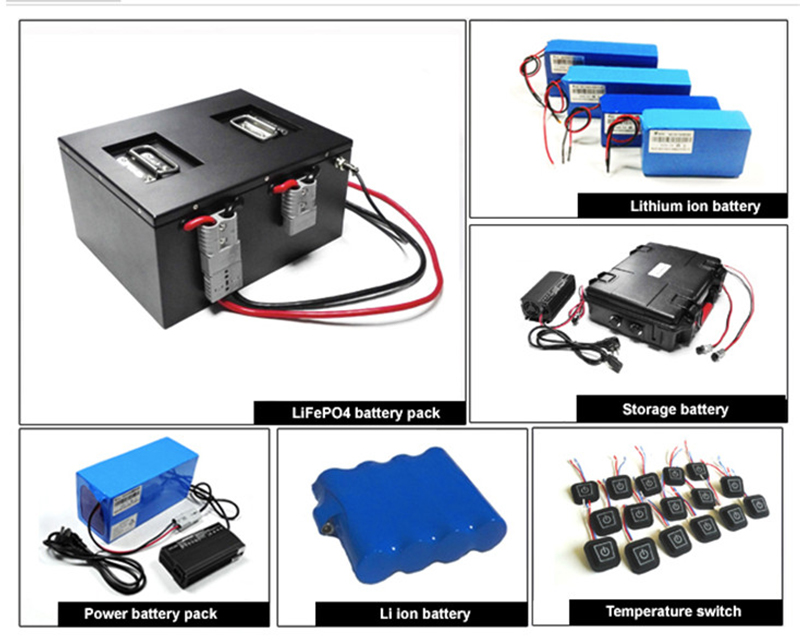

battery 24v 30ah for medical scooter 2


1. High energy density
2. High working voltage for single battery cells
3. Pollution-free
4. Long cycle life
5. No memory effect
6. Safe and reliable
7. OEM/ODM is welcome

1. We will quote the price according to the basic detail of products you offer,such as the voltage, the capacity, the discharging current, size, quantity, trade term, and the material.
2. As we confirm the details of products, we will make sure the payment,packing, shipping ways, lead time.
3. After you paid, we arrange the products within 7 days, send to shipping company,give you track number.
4. When sample is approved, let us start mass production.

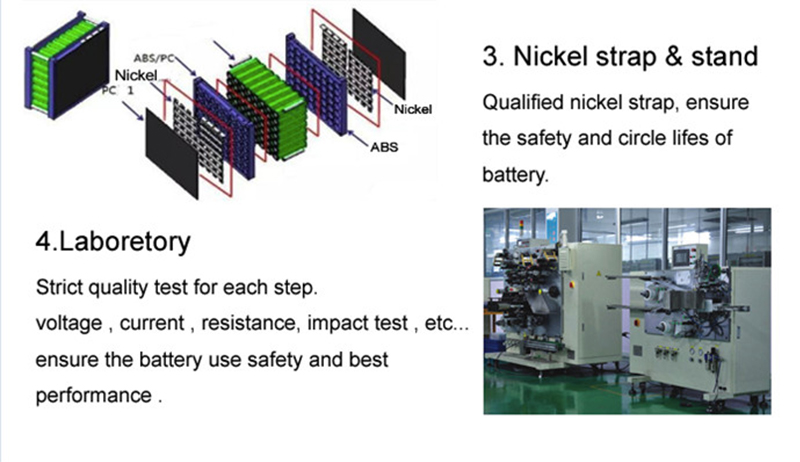

battery 24v 30ah for medical scooter 3

* LED light system;
* Touist car battery
* EV bus battery
* Car battery
* electric bus battery
* Solar battery / solar panel battery
* Portable VTR/TV, tape recorders, radios, etc.
* Power tools, lawn mowers and vacuum cleaners
* Cameras and photographic equipment
* Portable measuring equipment
* Various power toys and recreational equipment
* Uninterruptible Power Supply
* Communications and electric equipment
* Emergency lighting equipment

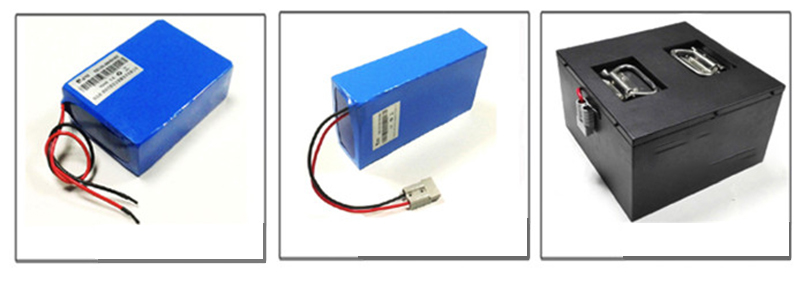

battery 24v 30ah for medical scooter 4

Energy Storage: UPS , backup ,power station.
EV : Golf trolleys , Electric scooters .
Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
Telecommunications Base Stations.
UPS(Uninterrupted Power Supply).
General Energy Storage (Such as: Back-up Power, Miner’s lamp, portable power supply, digital products etc.)
