Electric Bike Battery 36V 10AH

Custom E skateboard battery 36V 11Ah Description: Main parameters of e bike battery 48v

Product Details

– – Service by us- –
1. Give you the specific battery pack within 24hours according to your requirements.
2. Professional: Professional technicians offer overall systematic service.
3. One-stop battery…

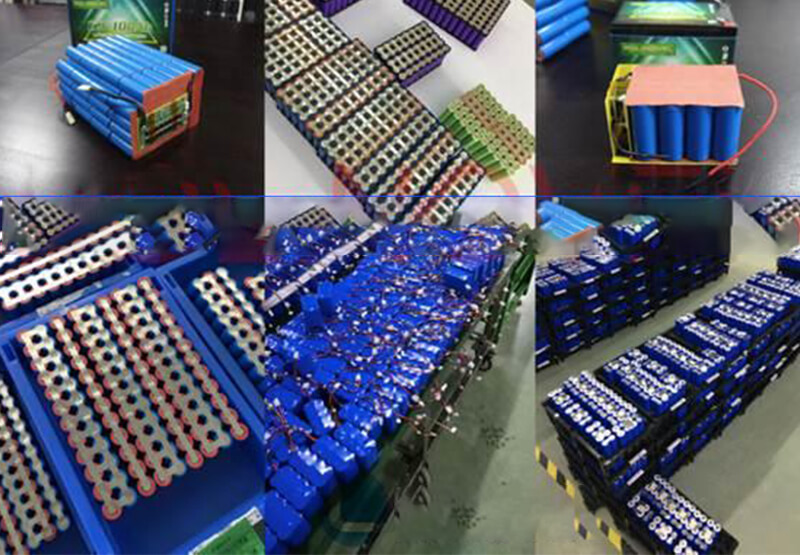

electric bike battery 36v 10ah 4


Basic Specification of 36V 11Ah Battery Pack
Nominal Capacity @ 0.2C 11Ah Cell connect way 10S5P
Nominal Voltage 36V Total Cell Quality 50pcs
Discharge Cut-off Voltage 39V Cell Type 18650
Charge Cut-off Voltage 42V Dimensions(mm)  265*160*45
Charge Current 4A Weight (including case)  2.8 kg
Continuous Discharge Current 15A Charge Temperature Range 0°C~45°C
Peak Discharge (max. 10 sec. duration) 35A Discharge Temperature Range -20°C~60°C
Cycle Life (1C/1C 100% DOD) 500 cycles Charge Method CC/CV

Main parameters of e bike battery 48v
LINKAGE battery’s extreme power performance, safety technology guarantee, running far. More durable, stable and safe, comprehensive shockproof, ultra-high energy density polymer battery, single charge can run up to 200 kilometers, super fast charge patented technology, fast 15 minutes full speed, fast charging without damage, high power output, strong power.

Additional function:We can add the Bluetooth BMS on the battery,which you can check the battery SOC from it.

electric bike battery 36v 10ah 2

The following are some maintenance methods for the battery:
1: The battery should be firmly installed on the electric bicycle to prevent the battery from being damaged by vibration when riding the bicycle.
2: Frequently remove dust and dirt on the battery cover, and pay attention to keeping the battery dry and clean to prevent the battery from discharging by itself.
3: Never leave the battery in a state of insufficient power for a long time, and develop a good habit of charging the battery every night.
4: When the electric bicycle is just started, use the pedal to help it to start, so as not to damage the battery due to excessive discharge current.
5: When riding a bicycle, be careful not to over-discharge the battery. Over-discharge can easily cause serious battery power loss, which greatly shortens its service life. Electric bicycles generally have undervoltage protection functions. When a light on the battery level indicator is on, the battery should be charged immediately to avoid over-discharge of the battery.

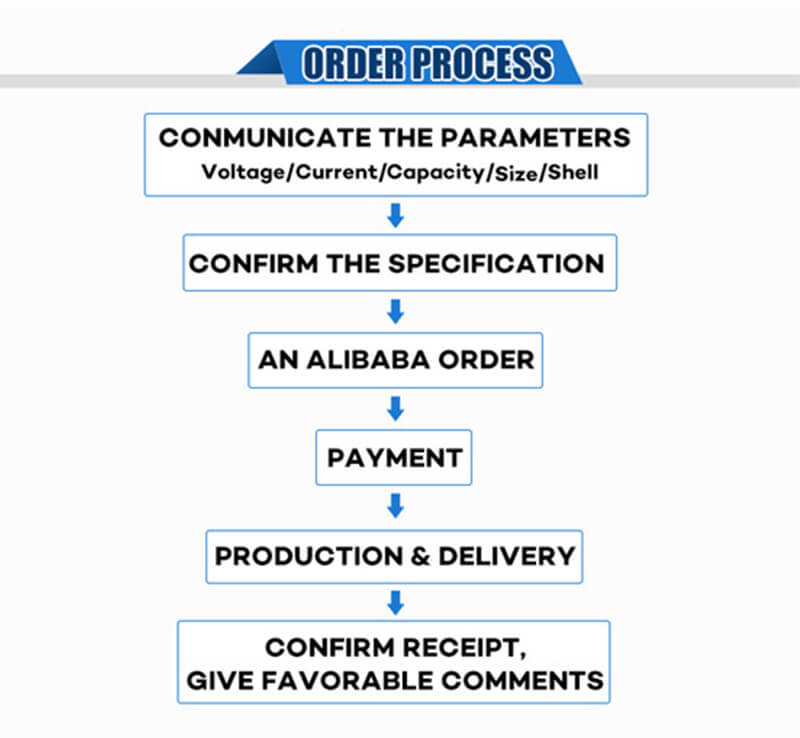

electric bike battery 36v 10ah 3
