AGV Battery 24V 200Ah Forklift Battery Charger

AGV battery low speed vehicle 24V 200Ah

Product Details

Battery Name: 24V 200AH, 55AH, 65AH lithium Ion battery
Battery Type: LKG-18650-25P7S
Nominal voltage (V): 24V
Nominal capacity (Ah): 50AH, 55AH, 65AH
Operating voltage range: 29.4V-21.0V
Over charge protection cut-off voltage (V): 29.4V
Over-discharge protection cut-off voltage (V): 21.0V
Maximum charge current: ≤20A
Continuous discharge current: ≤40A
Pulse discharge current: ≤120A
With load capacity: ≤ 960W
Service life: ≥ 500 times
Charging temperature (°C): 0~45°C
Discharge temperature (°C): -20~60 °C
Storage temperature (°C): -20 to 35 °C
Battery temperature protection (°C): 70°C±5°C
Size (mm): 80(T) x235(W) x 360(H)
Internal resistance of battery (mΩ): ≤ 100 mΩ
Battery weight (kg): about 9.0kg

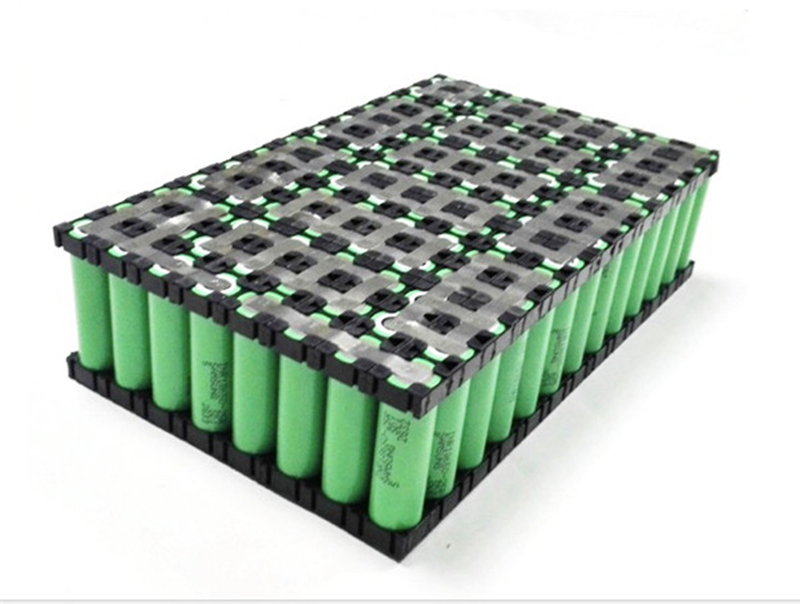

agv battery 24v 200ah fforklift battery charger 2

This is a high-capacity intelligent lithium iron phosphate battery pack, supporting RS485 communication protocol, 3-level hardware overcharge protection, real-time monitoring of the balance status of each battery cell when the battery is working, and it will be prohibited when an abnormal imbalance occurs Charge.

Also we focus on such battery pack:
Lawn mower power battery, lawn mower, power tool 48V lithium battery 18650 battery pack production
IP67 waterproof 18650 lithium battery PACK.
48V 64Ah rail car power battery
Customized development of 18650 power lithium battery for RS485 60V20Ah electric motorcycle
Geological exploration, environmental monitoring, transportation, plant protection drone lithium battery, self-balancing vehicle lithium battery, electric bicycle, electric motorcycle lithium battery
Underwater propeller waterproof 18650 power lithium battery customization
Large-capacity lithium iron phosphate energy storage battery pack UPS power supply
