Product Parameters 72V 100ah Storage Lithium LiFePO4 Battery Pack with BMS for Electric Car of Features Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good Energy density per volume are higher Stable BMS system with short-circuit protection…
| Working Voltage | Nominal | 76.8 | V | |||
| Range | 87.6 | V —- | V | |||
| Nominal Capacity | 120Ah | |||||
| Battery Power | 25°C | 8,640 | Wh (100% DOD @ 0.5C rate) | |||
| – 10°C | 7600 | Wh (100% DOD @ 0.5C rate) | ||||
| Operation Temperature Range | – 10°C — 50°C | |||||
| Continuous Charge Current | 20A TBD | |||||
| Max Charge Current | 30A TBD | |||||
| Continuous Discharge Current | 50A TBD | |||||
| Max Continuous Discharge Current | 80 A TBD | |||||
| Peak Discharge Current | 120A(last 3s) TBD | |||||
| Storage Temperature Range | -10~35℃ | |||||
| Weight | ≤45KG | |||||
| Self-discharge | 30 days ≤5% in 25℃ | |||||
| Cycle Life | More than 1000 times(0.5C charge and discharge,Temperature:20±5℃,Higher than 80% of the Initial Capacity of the battery pack | |||||
| Level of Protection | IP65 | |||||
72V 100ah Storage Lithium LiFePO4 Battery Pack with BMS for Electric Car of Features
Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good
Energy density per volume are higher
Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .
It can run well under different temperature environment condition
No memory effects.

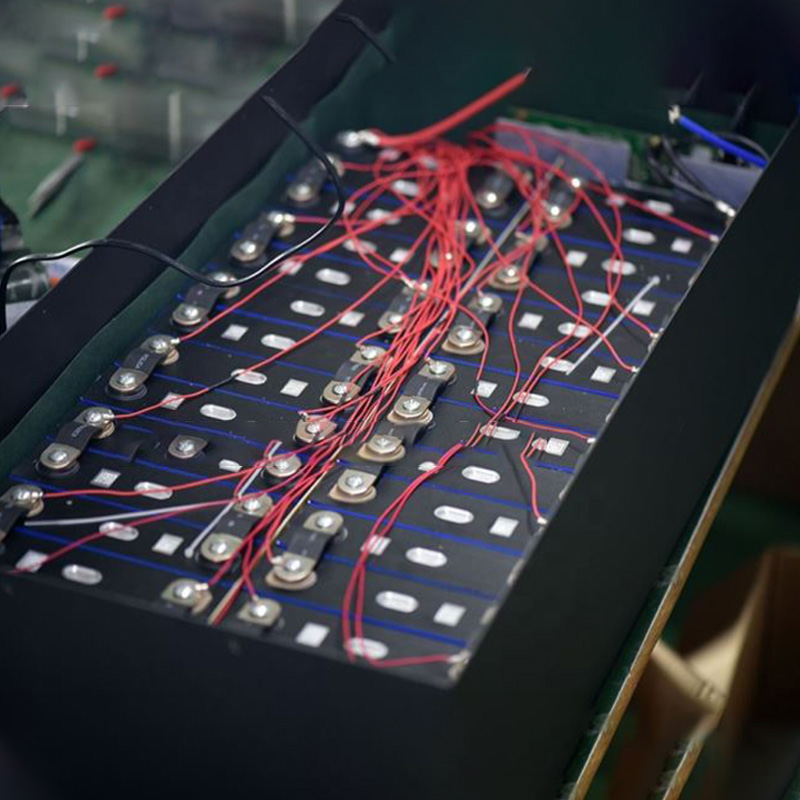

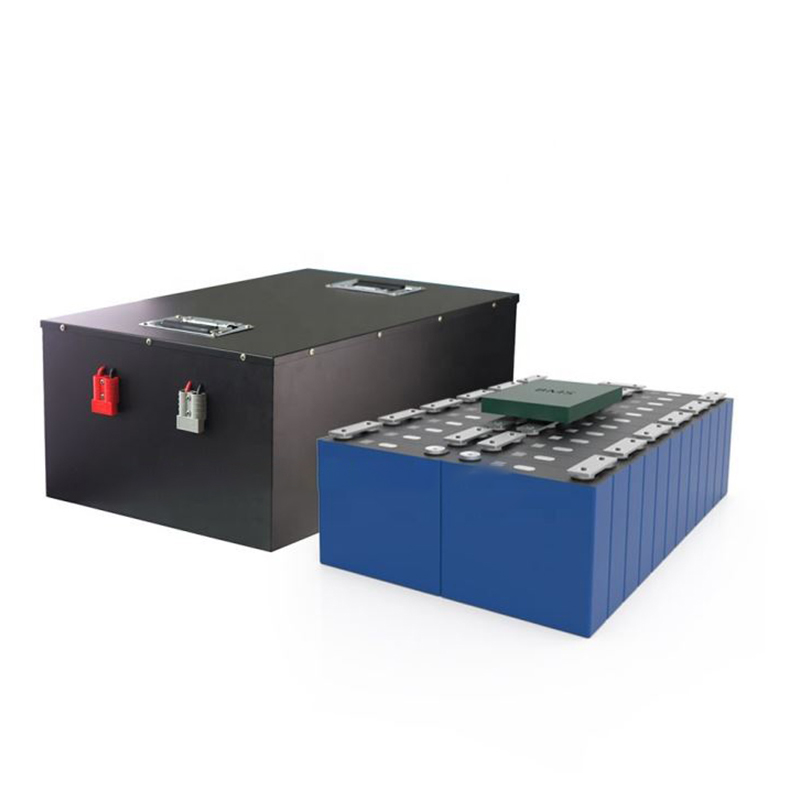

72V 100ah Storage Lithium LiFePO4 Battery Pack with BMS for Electric Car of Product pictures
1.Grade ATL or BYD cells,EV standard BMS
2. Excellent safety: non-explosive/non-combustible (built-in high-grade silicone oil design, electrolyte added flame retardant)
3. At the same time, high resistance and low temperature resistance-55 degrees Celsius performance is good (silicone oil has anti-freezing and heat dissipation functions in addition to insulation)
4. Quick charge and quick release: continuous 1C (instant 2C) charging, continuous 3C (instant 5C) discharge. The actual maximum can reach 10C instantaneous discharge.
5. Pure aluminum shell design, light weight.

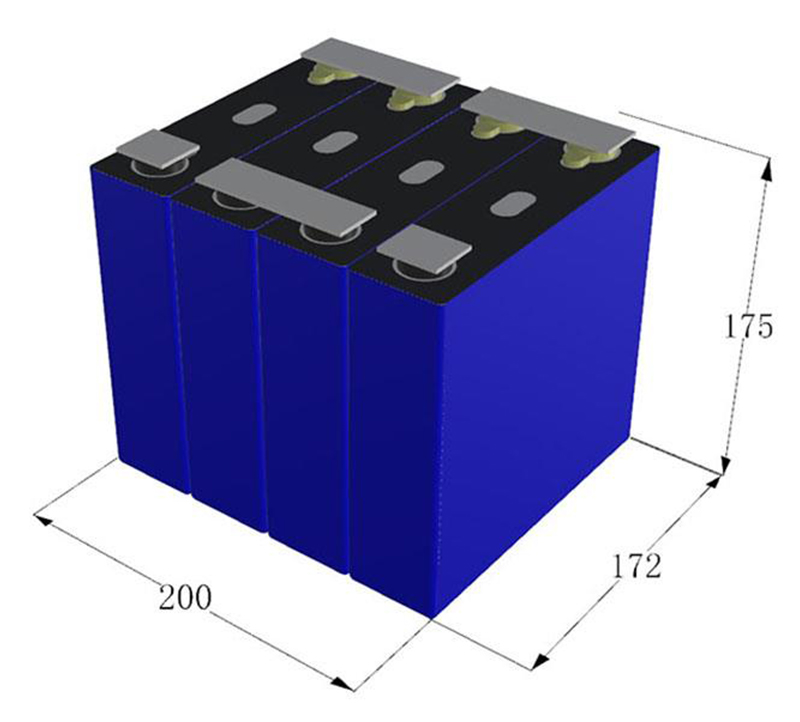

6. Small module 24V100Ah (10 parallel and 7 series), the whole group uses the common voltage and power that are highly suitable for all low-speed power or energy storage in the market.
7. Deep charge and discharge performance: The minimum cut-off voltage specified in the specification is 2.0V; the maximum cut-off voltage is 4.20V.
