Subsea Battery 110V 80AH

72V 160AH Pure Electric Vehicle Power Lithium Battery Pack

Product Details

Battery Type: LKG-72V-160AH
Nominal voltage (V): 72V
Nominal capacity (Ah): 160AH
Operating voltage range: 84V-60.0V
Over charge protection cut-off voltage (V): 84V
Over-discharge protection cut-off voltage (V): 60V
Maximum charge current: ≤60A
Continuous discharge current: ≤80A
Pulse discharge current: ≤60A
With load capacity: ≤ 5000W
Service life: ≥ 1200 times
Charging temperature (°C): 0~45°C
Discharge temperature (°C): -20~60 °C
Storage temperature (°C): -20 to 35 °C
Battery temperature protection (°C): 70°C±5°C
Size (mm): (width 230* length 435*height 220)*3 groups
Internal resistance of battery (mΩ): ≤ 100 mΩ
Battery weight (kg): about 112kg
Input port requirements: input and output split, input 25th 4-pin air plug 1, 2 positive, 3, 4 negative, output 25-pin 4-pin air plug 1, 2 positive, 3, 4 negative.
Packaging process: fixed frame + epoxy board + PVC + iron shell paint

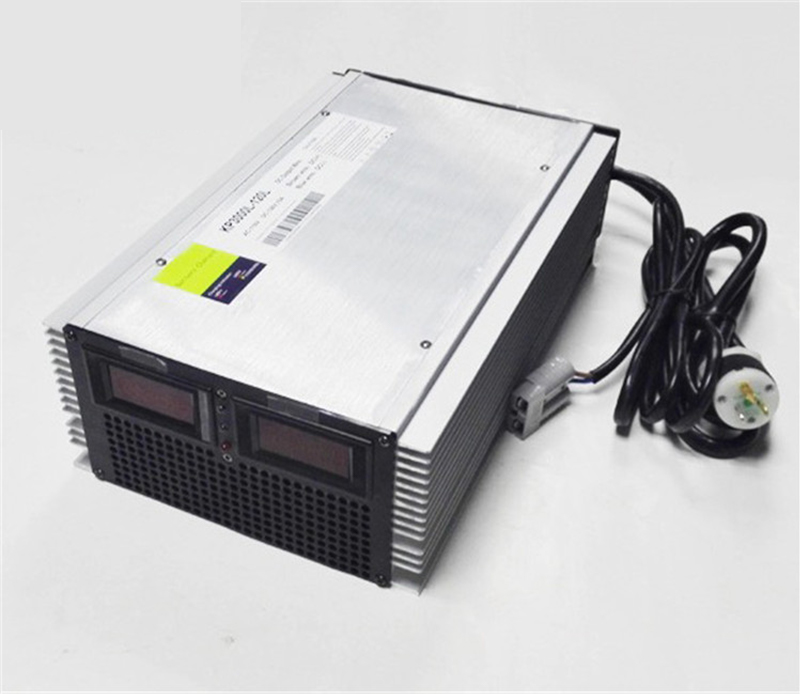

Supporting 84V15A Lithium Battery Charger
Shelf life: 2 year warranty
Features: Long cycle life, light weight battery, high safety performance, green environment
Widely used in: pure electric vehicles, robots, AGV, communications equipment, medical equipment, solar street lights, home energy storage, energy storage power stations, etc.;

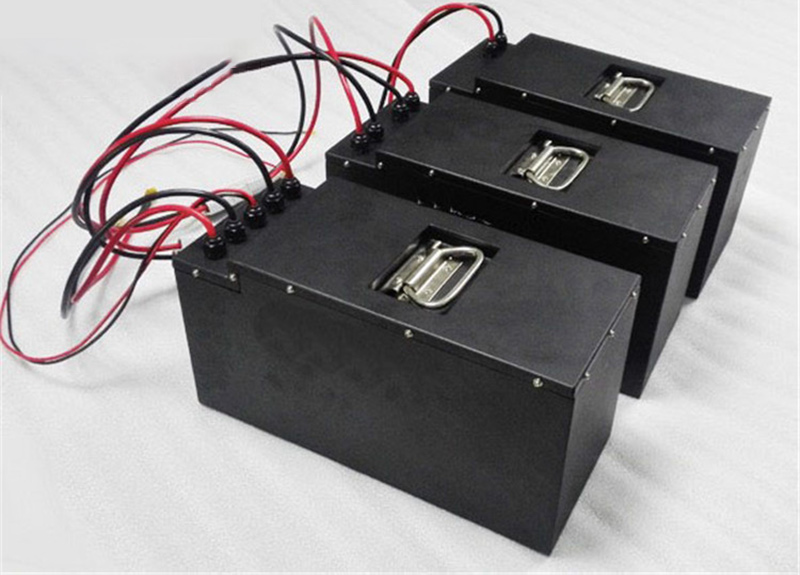

subsea battery 110v 80ah 2

Longer Life
Our battery is with 3000 – 5000 cycles. On average, good quality lead acid batteries last between 100 – 300 cycles in a golf cart. After 150 cycles the lead acid batteries can produce less than half of their rated capacity meaning you get less than half of the range you got when they were new. In the long run, you would need to replace lead acid up to 10 times to get the same cycle life as 1 set of our battery

Lighter Weight/Higher Energy Density
Our battery weigh is about 70% lighter than lead batteries. A typically 48V golf cart will have around 500-600 lbs. of lead acid batteries. Switching to lithium will remove over 300 lbs. out of the cart. This will reduce the amount of energy required to get your cart up to speed and will help reduce wear and tear on your carts controller, motor, suspension, frame and tires.

Higher Voltage
Our battery hold a higher voltage during use than lead batteries. This equals more torque for your motor and allows the controller and electronics to run at their optimal efficiency. When you step on the pedal with lead batteries, the voltage can drop below 10V causing the controller to run inefficiently and providing less power to the motor which reduces torque. The higher voltage of our golf cart batteries will allow your cart to get up to speed quicker, and hold the speed higher, throughout the entire charge cycle and while going up hills.

Fast Charging
OUR batteries are 99.1% efficient whereas lead acid batteries can be as little as 50 – 80% efficient. When you charge lead acid batteries, you can lose anywhere from 10% – 50% of the energy from the charger to your batteries. This means 50% of the power used to charge your golf cart is being lost due to resistance from the lead batteries. Using your existing charger, lithium batteries can charge up to 50% faster. We recommends you purchase one of our chargers for your golf cart to get the best performance and longest life from our lithium golf cart batteries. OUR lithium batteries may be recharged in less than 1 hour when you purchase a high-speed lithium charger from us.

Higher Capacity
Our lithium golf cart batteries are designed to allow you to safely use 100% of the rated capacity without lowering the life expectancy. Lead acid batteries are only recommended to be drained 50%. Imagine filling up your gas tank with 100 gallons of gas and the car only being able to use 50 gallons before needing to refuel.

Life Time Warranty
We provides a Limited Life time warranty to protect your investment in our products. With a life expectancy of up to 5000 cycles, you may never have to replace the batteries in your cart again. Even if you used the cart every day draining the batteries 100%, you could expect more than 10 years out of the batteries – 365 days per year X 10 years is 3,650 cycles.

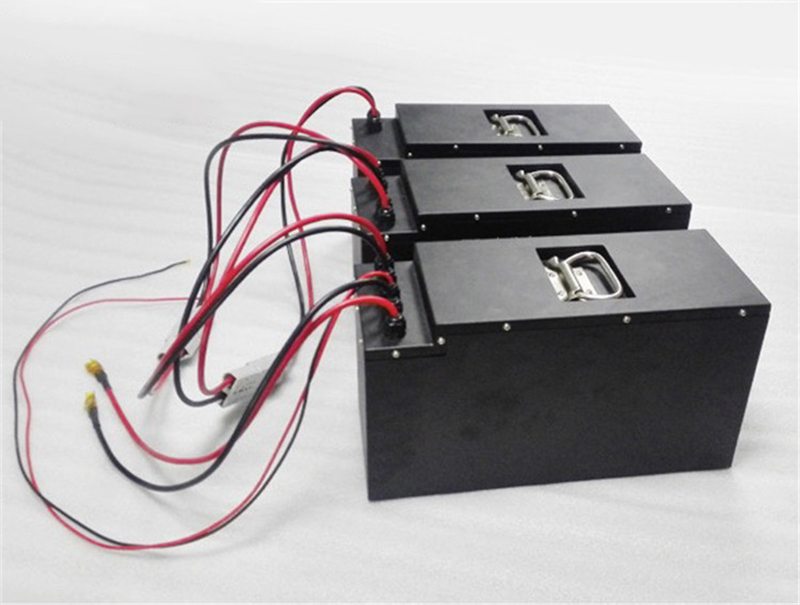

subsea battery 110v 80ah 3

Life at least 2000 cycles
Our batteries will maintain over 80% of their rated capacity after 2000 cycles at 100% depth of discharge. This means if you have a 100AH lithium battery, after 2000 cycles it will equal an 80AH battery. Simply put, if you went 100 miles when the lithium batteries were new, you would still be able to go 80 miles after 2000 cycles.

No Memory effect
Our lithium batteries have no memory and can be recharged at anytime no matter if you went 500 ft. or 50 miles. To get the best life out of your lead batteries, it is suggested you use the recommended depth of discharge every time before recharging.

subsea battery 110v 80ah 4

1.Where is the place of your factory?
Dear, the place of shipment is in Shenzhen
2.Are you a manufacturer?
Yes, we are a original manufacturer,source supplier, mainly engaged in street lamp, off-grid, and energy storage battery business.
3.How much is the energy storage battery
Energy storage batteries are generally customized products. Different types and power storage batteries have different prices. You can provide product specific parameters, application scenarios and other information, and we will provide you with professional solutions and quotations.
4.How is your Photovoltaic energy storage system solution
our factory has a professional design team, you can provide your specific needs, we will configure the most cost-effective solution for you.
