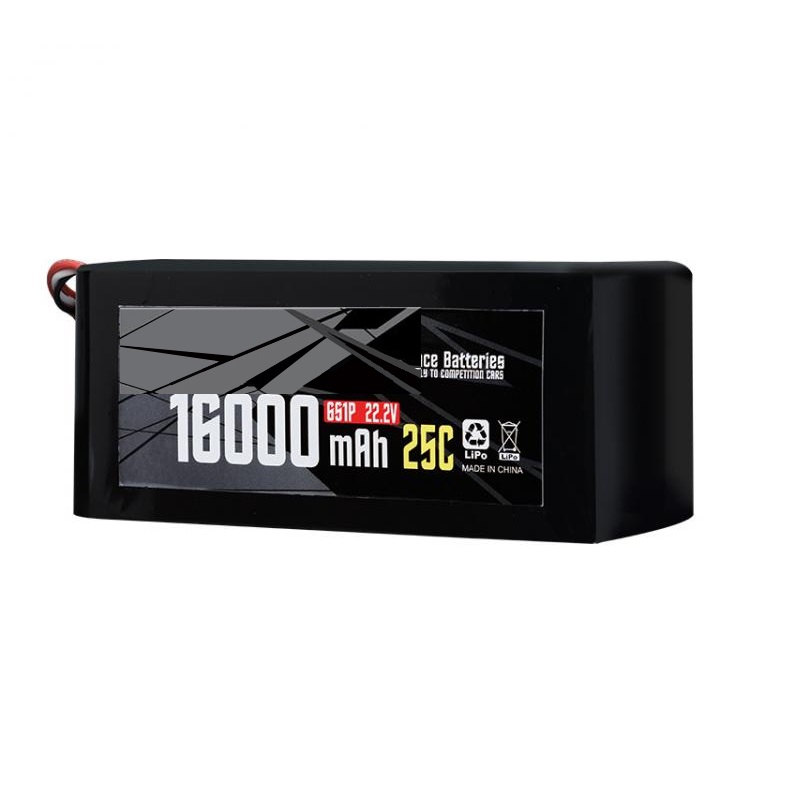

6S 22.8V 16000mAH 25C Quadrotor Battery

Origin: Shenzhen China
P/N: 6S 22.8V 25C 16000mAh
Rated Capacity: 22Ah
Standard Voltage: 22.8V
Pure Lithium Cobalt battery
Charge Current: 20A
Charge time: 1 hour
Application: big multirotor, UAV, UAS, Drone 44.4V or 45.6V for maping, agriculture, disaster saving.
High Discharge platform, more powerful, long endurance time, increase the working efficiency.

Product Details
Battery type High rate polymer lithium battery 4.35V cells Product 6S 22.8V 25C 16000mAh
recharging current 1C (satisfied with 3C charging) Discharge rate Continuous 25C/Instant 40C
Finished weight 2000g Size 75*91*195(mm)

(thickness*width*length)

Combination method 6S1P Warranty 90 days/180 days
Outgoing Discharge line: 10AWG silicone wire, exposed line length is 145mm

Charging line: 22AWG silicone line, exposure line length 70mm

plug Discharge end: XT90 (welding XT60/XT150/AS150, charge another charge.)

Charging end: JST-XH balanced plug

Application Plant protection, surveying and mapping, reconnaissance,aerial and aerial drones .

6s 22.8v 16000mah 25c quadrotor battery 2

Relative to ordinary 4.2V battery, High-voltage battery (4.35V) has longer battery life, Stronger power. Note: The weight, cycle life, and charge are the same as those of ordinary batteries. with high-voltage batteries, There is no need to make any changes to drone equipment.

LINKAGE is a professional drone battery brand, which is suitable for the drone industry and can be widely used in film and television aerial photography, agricultural plant protection, address survey, forest fire prevention, flood fighting, environmental monitoring and other fields, bringing a difference to the majority of drone users Flight experience, creating a global professional drone battery brand.

The linkage battery has superb matching technology, safe and stable raw material formula, stable and gentle discharge curve, scientific and rigorous control system, sufficient capacity, sufficient rate, safety and stability, long battery life, good cycle times, not easy to swel. The integrated high-performance, low-power MCU can accurately sample the cell voltage, and conduct mature and intelligent self-discharge and balance management on it, effectively extending battery storage, service life, and avoiding battery swelling. One button can realize all functions, easy to use. LINKAGE battery high voltage series rely on superb cell technology and battery production technology, with strong quality assurance. The high-pressure series is in terms of energy density, battery life, and cycle performance. The discharge rate has been greatly improved, and the cost performance is higher.

Of course, the battery performance of drones also has levels, mainly depending on the requirements of the use of drones, such as drones, helicopters or other aircraft used for competitions. Most of them are high-performance and high-quality drones. Human-machine batteries are used for normal training or do not require very high battery discharge performance. Most of them use batteries with relatively good cost performance.

It is not possible to generalize before and after the ranking of drone battery brands, because drone battery brands have many types of battery attributes. Under different uses, the advantages of drone battery brands will be different. For man-machine batteries and training drone batteries, the performance of these two batteries is different. The battery performance of racing games is much better than that of training batteries, so you usually buy drone batteries. You will see batteries of the same capacity and size, but the prices are expensive and cheap.
