Spec. of 48V 200ah lithium battery pack:
1. Type: Li-ion battery with PCM
2. Nominal voltage: 48V
3. Typical capacity: 200Ah
4. Dimension: custom
5. Max Charge voltage: 54±0.05V/
6. Discharger cut-off voltage: 40±0.05V
7. Max charge current: 100A
8. Max continuous discharge current: 200A
9. Max pulse discharge current: 50A
10. Charging temperature: 0°C~45°C
11. Discharging temperature: -20°C~60°C
12. Storage temperature:  -20°C~45°C
13. About 500 cycles to 80% with 100% DOD under: 20 °C~25°C

With RS485 232 interface, which those battery modules can be parallel to get a higher capacity.off-grid solar system storage, Telecommunication/BTS/Central data center/Power station/UPS.

LiFePo4 lithium battery Features:
1. High operation voltage.
2. High energy density.
3. Long cycle life, more than 1500 charge/discharge cycles ( 800% capacity remained ).
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory.
7. Environmentally compatible.

12V 150ah li-ion battery pack with bluetooth Features:
1). With Bluetooth function, mobile phone APP connection;
2). LCD display: battery pack volt., single cell volt., work current, temp, cycle number, design capacity, time to full, time to empty,product serial, production date;
3). Communication interface: Bluetooth module modification,energy display module program;
4). Balancing charge interface: for balancing chargers.

Our Specialties
1.Our battery blocks are assembled in a battery cases made of synthetic material, which not only stabilize the block, but also increase its lifespan. Li-ion cells warms up during the charging and discharging process; the protection cases maintain space between the cells, so the warmth spreads on the surface.
2. Connections are welded with nickel-based alloys (more than 95% nickel) and not with iron-based alloys. This alloy has a better high-temperature resistance, is robuster and has a lower internal resistance.
3. Use of FR4-isolation: these flame-resistent and  flame-retarding composite materials consist of epoxy resin and fiberglass reduce the danger of short circuits and combustion of  textiles (carrying bags etc.)

BMS Feature
ASIC chip, high precision acquisition, automotive grade material, Lightning Surge Immunity Test, redundancy design, high temperature aging, electron- static discharge, EMC, current balancing technology, maintenance-free battery system, The water detection, smoke detection, collision warning system actively.
FEEDBACK

Temp. Balance & Bonding
Aluminum wire bonding process with bus-bar design, triaxial vibration design, waterproof and dust proof design, structure lightweight design technology, which solved the core issue of power battery, improving the safety, reliability and stability. At the same time, the problem of BATTERY heating, heat dissipation was managed by temperature equalization technology ,which improve the battery performance and life span. PLB continue to optimize the battery pack design, so as to ensure the safety of product.
Terms of  payment :T/T in advance
Terms of shipment :FOB Shen zhen
Certificates: UL , CE, ISO9001 ,NQA
Product feature:
Attractive cycle life
Extended safety performance
Wide operating temperature range
Unrivalled high temperature performance
Green energy without metal contaminant
High capacity
Steady output voltage
Little self-discharge
Double safety protection
Withstanding very high level of vibrations and shocks

Shipping and servicing
1) We have professional cooperate forwarder
2) 2 years after sales service

Product feature:
Attractive cycle life
Extended safety performance
Wide operating temperature range
Unrivalled high temperature performance
Green energy without metal contaminant
High capacity
Steady output voltage
Little self-discharge
Double safety protection
Withstanding very high level of vibrations and shocks

Feature

+ Four-level safety protection with high safety performance to ensure the safety and reliability of the system (cell level, module level, module level, system level)
+ Excellent high-rate discharge performance, maximum 10C discharge, discharge efficiency ≥ 95%
+ Full state management 100% battery cell management + functional device management
+ Long service life design life of 20 years
+ Long cycle life 1C charge and discharge ≥ 2500 times; 4C discharge / 0.5C charge ≥ 1000 times
+ Intelligent cloud management system predictive operation and maintenance support, cloud monitoring operation and maintenance, support for multi-role management
+ Intelligent fire control system (optional) built-in fire control system, 7*24 guarantee system and facility safety

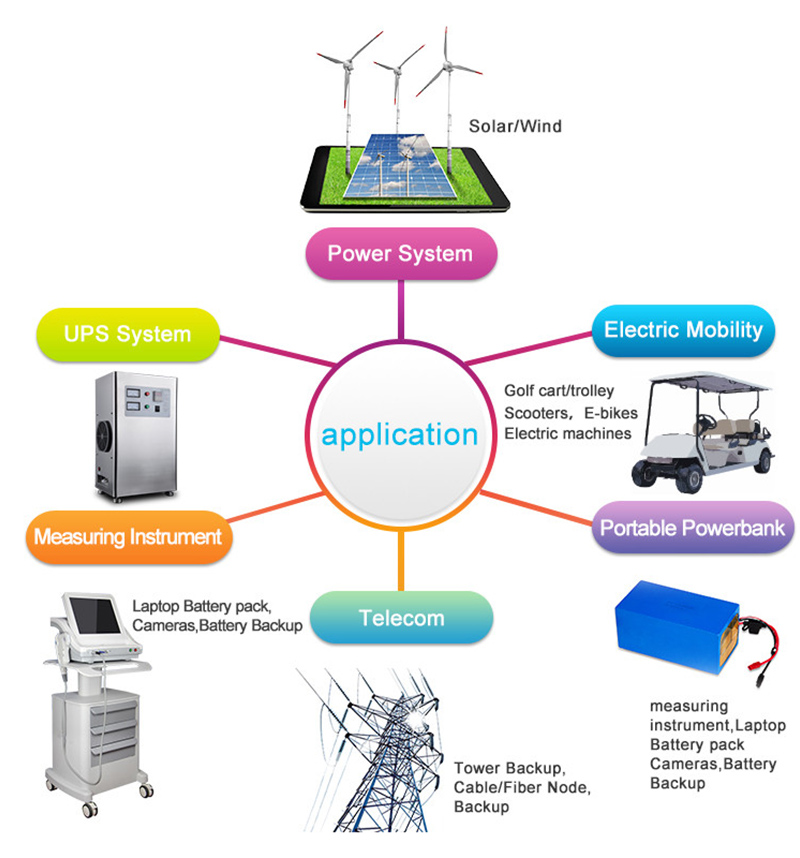

Application

+ Suitable for UPS or other inverter devices of various brands
+ Data center
+ Financial institutions
+ Rail transit
+ Wind-solar complementary energy storage
+ Backup power in areas without mains power

The power storage module is a battery that can store energy, detect power outages, and automatically become your home’s energy when the grid fails. Unlike gasoline generators, battery bricks can keep your lights on and your phone charged without maintenance, fuel or noise. Pair with solar power and charge Keep your appliances running in the sun for several days.
The storage brick reduces the dependence on the grid by storing solar energy, because the storage brick is a battery that can store energy and detect power failure And when the power grid fails, it will automatically become your home’s energy source. Unlike gasoline generators, battery bricks keep your lights on all the time Charging with phones requires no maintenance, fuel or noise. Pair with solar power and charge in the sun to keep your appliances running for several days.

Energy storage

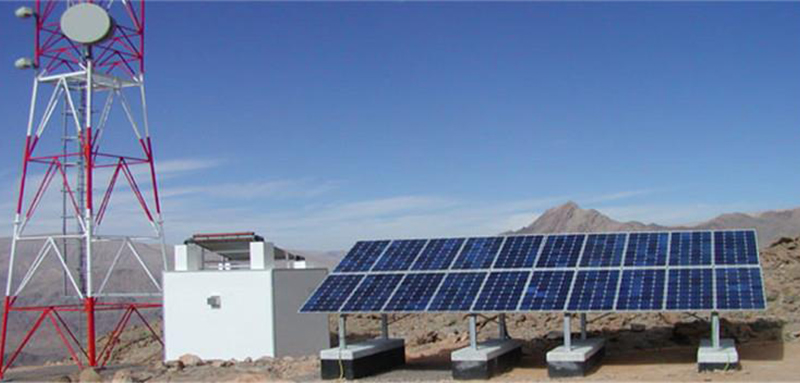

–Solar wind power system/urban grid (on/off)/community and home
Backup system and UPS –
Telecommunication base/cable television system/computer server center/medical equipment/military equipment
other apps–
Security and electronics/mobile POS, mining lighting/flashlight/LED light/emergency light–
RV/Golf Cart Battery/Marine Yacht/Electric Skateboard
–LED backup/engine start battery, etc.
