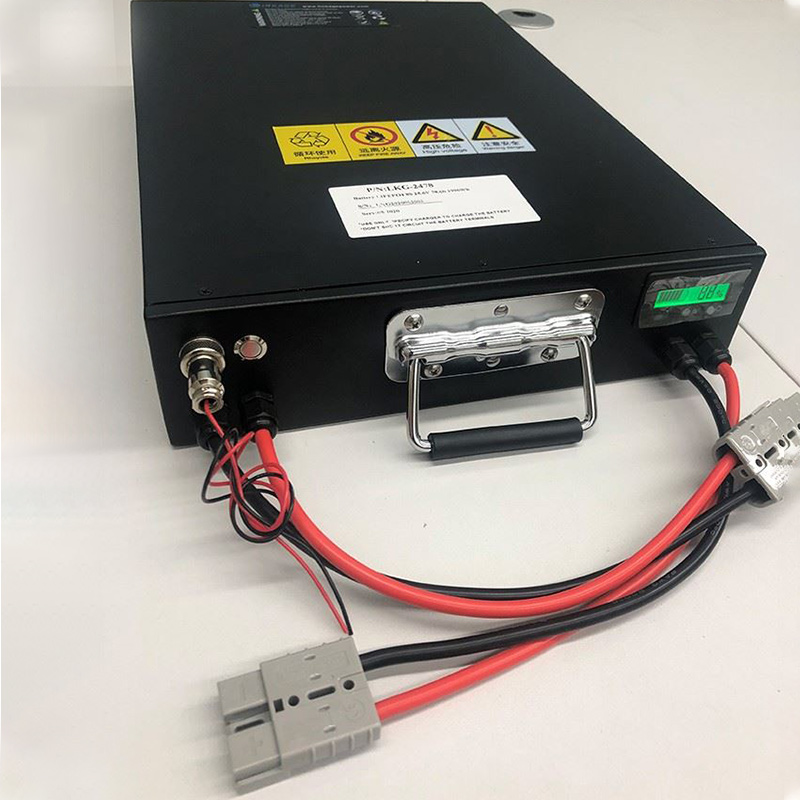

AGV Battery with monitoring system/Display

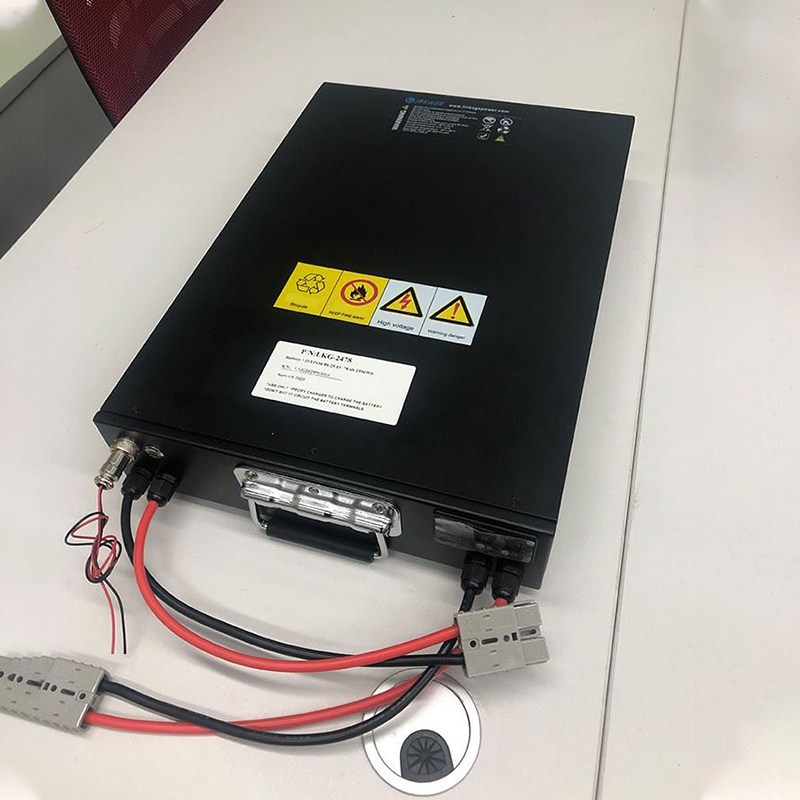

| 24V 60Ah Battery Pack Rechargeable Replacement Lithium Battery for AGV / Robot / Forklift | |
| Item | Specification |
| Battery type | 8S/24V/78Ah |
| Model no. | 8S78AH |
| Chemistry | LiFePO4 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 78Ah |
| Charge Voltage | 29.2V |
| Charge Current | ≤60A |
| Discharge Current | ≤90A |
| Instantaneous Discharge Current | 120A |
| Discharge Cut-off Current | 21.6V |
| Internal Resistance | ≤100mΩ |
| Life Cycle | ＞2000 |
| Temperature Protection | 55℃ |
| BMS | Include BMS |
| BMS Protection | Short-circuit protection, over-charge protection, over-discharge protection, over-current protection, temperature protection and keep the battery power balance. |
| Communication | RS485&RS232 |
| Case | Metal |
| Dimension | TBD |
| Weight | 22Kg±1Kg |
| Warranty | 12 months |
2. Temperature performance
Discharge temperature range: -30℃—+60℃
Charging temperature: -30℃—+40℃
Note: At low temperature -30℃ and high temperature +60℃, the discharge capacity is not less than 70% of the standard capacity
3. Vibration requirements
Frequency: 10-50-10HZ
Amplitude: 1.5mm
Time: 45min (without load)
4. Drop test
Height: 1.0m
Floor: wooden floor
5. Features
With weak current switch;
The battery comes with temperature protection;
Battery comes with power detection port;
485 communication management: SOC management, fault warning;
The battery pack is safe and has a long cycle life;
Quick charge 0.5C charging;
The battery pack has a high cycle life, which is in line with the values of low carbon, energy saving and environmental protection.
