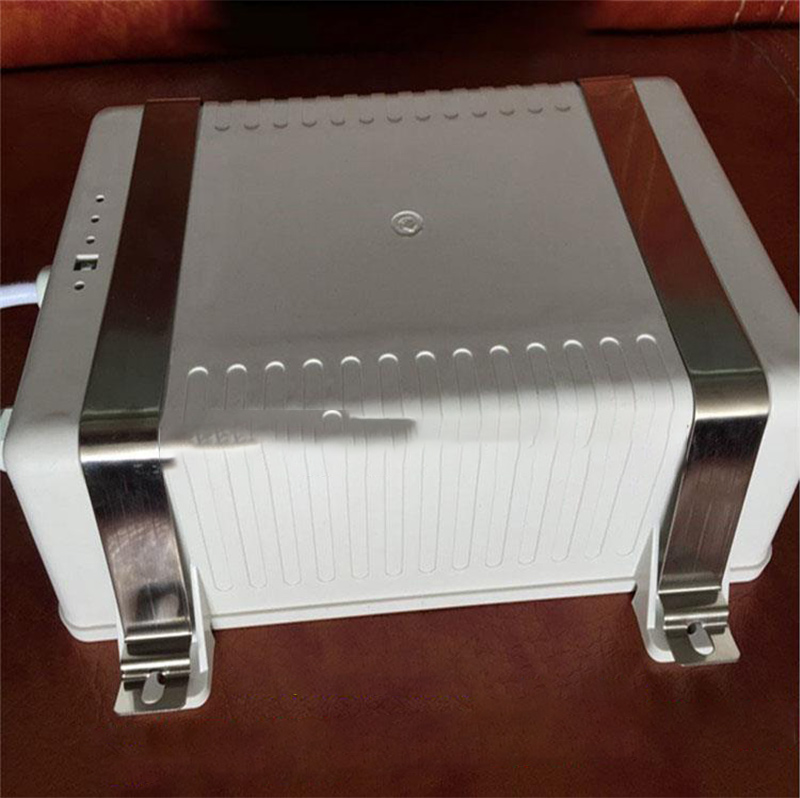

Solar street Battery 12V 30Ah 3S15P,can support Solar Charger
| Items | Standards | Remarks | ||||||
| 1. Capacity | Typical | 30.5Ah | CC/CV, 0.2C5mA Discharge | |||||
| Typical Capacity | 30.0Ah | CC/CV, 0.2C5mA Discharge | ||||||
| Minimum | 30.0Ah | CC/CV, 0.2C5mA Discharge | ||||||
| 2. Nominal Voltage | 12V | |||||||
| 3. Internal Resistance | ≤200mΩ | AC, 1 kHz, Full Charged | ||||||
| 4. Battery Weight | ≦2.40Kg | |||||||
| 5. Battery Charge |
Standard Charge |
0.2C |
5.5hrs(CC/CV, Refer to 54.6) |
|||||
| Quick Charge | 0.5C | 2.5hrs(CC/CV, Refer to 4.3) | ||||||
| 6.CC Charge Cut-off Voltage | 12.6±0.05V | / | ||||||
| 7.Discharge | Standard Discharge | 8A, 12V | CC [email protected] | |||||
| Maximum Discharge |
30Ah, 12V |
Discharge@1C5mA | ||||||
| 8. Pulse Discharging 8 seconds | 3C | 15A@25℃ | ||||||
| 9. Typical Charge Characteristics | 10.Discharge Characteristics at Different Current | |||||||
| 11.Cycle Life | >300times | Refer to 5.6 | 12. Discharging Curve at Different Temperature | |||||
| 13.Operating
Temperature Range |
Charging Temperature | 0℃～45℃ | Environment temperature(battery surface temperature must be less than 65℃) | |||||
| Discharging Temperature | -20℃～60℃ | Environment temperature(battery surface temperature not to exceed 80℃) | ||||||
| Storage Temperature | -10℃～60℃ | recommended long-term storage
temperature is 0~35℃ |
||||||
| 14.Storage Life | One year | Nomal shippment | ||||||
| 15.Appearance | No deformations, stains, corrosion or electrolyte leakages | |||||||
| 16.PTC | Internal Resistance | 12～17mΩ@25℃ | ||||||
| Max Time to Trip | 8A(About 20 s) | |||||||
Input port requirements: input and output at the same end, one square 2P engineering line (output port can be customized as required).

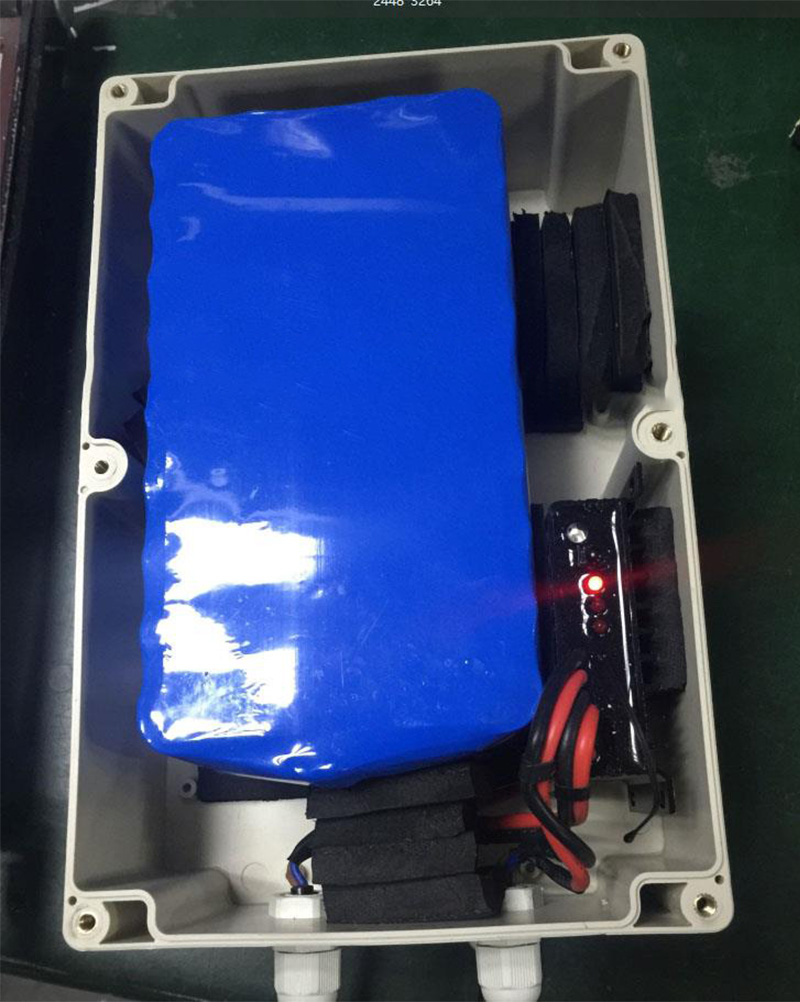

Packaging process: barley paper / epoxy board + PVC (can be added).
This product is widely used in: solar street lights, integrated solar street lights, solar garden lights, solar corn lights, solar insect killing lights and other fields!
The company’s battery has the following characteristics:
1. Long cycle life, light battery weight, stable voltage, no memory effect, high safety performance, green environmental protection, etc.
2. The battery has a built-in BMS system with multiple protection functions. The protection system (PCM/BMS) uses Japanese and American chips.
3. The core material is LiMn2O4 (lithium manganate), Li-Ni-Co-Mn-O (ternary material), LiFePO4 (iron lithium) is available.
4. Optional imported batteries and domestic famous brand batteries as a combination unit to ensure the consistency, stability and safety of the battery pack.
5. Multiple and multi-string combination and battery modular design: voltage 3.7V-220V, capacity 1AH-500!
